Liquid to Liquid Series

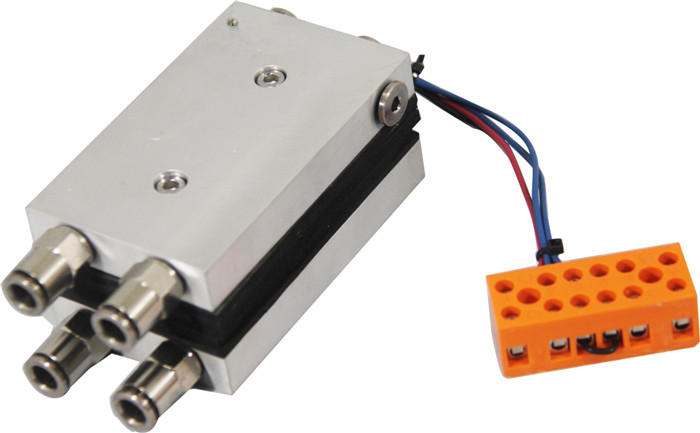

The thermoelectric liquid cooler is used to cool or heat liquids or gases passing through a heat sink.  Heat is dissipated to a liquid on the warm side.  The liquid circuit is normally of a circulating type with a pump and a Liquid-to-Air heat exchanger to remove the heat into the ambient air.  By using an efficient heat exchanger and one or more LL assemblies, a powerful yet compact system is created.  The liquid heat sinks are made of anodized aluminum.  To improve heat transfer, turbulators are inserted into the liquid channels.
       The standard assemblies are optimized for high cooling capacity and efficiency rather than maximum ΔT.  Typical applications include medical and analytical equipment, cooling or heating of process fluids.

Model No Pc Max(W) Voltage(V) Current(A) Ambient(℃) Weight(Kg) L(mm) W(mm) COP
LL-210-24 210 24 8.1 -10~63 1.4 240 60 1.07
LL-120-24 120 24 4.2 -10~63 0.82 140 60 1.21
LL-60-12 60 12 4.2 -10~63 0.5 100 60 1.22
