Thermoelectric Assembly > Air to Air Series

Air to Air Series


The thermoelectric assembly Air-to-Air heat exchangers, sometimes called thermoelectric air conditioner, peltier air conditioner, it is used to cool or heat objects in containers.  Heat is absorbed and dissipated by heat exchangers equipped with fans.  Simply cut a hole, plug in the assembly and connect it to a power source.  It is designed for dependable, compact requirement.  The thermoelectric/peltier air conditioner typical applications include cooling electronics cabinets, analytical instruments, commercial refrigeration and food or medicine transportation boxes.

Thermoelectric Assembly  Rules of Product

Basic Thermoelectric Assembly

Model No Pc Max(W) Voltage(V) Current(A) Ambient(℃) Weight(Kg) L(mm) W(mm) COP
PN-D3024D 30W DC24V 1.25A -10~55C 320g 104mm 64mm --
PN-D2412D 24W DC12V 2A -10~55C 320g 104mm 64mm --
AA-200-48 200 48 5.6 -10~52 7.3 400 153 0.71
AA-200-24 200 24 11.3 -10~52 7.3 400 153 0.71
AA-150-48 150 48 4 -10~52 5 300 153 0.75
AA-150-24 150 24 7.9 -10~52 5 300 153 0.75
AA-100-48 100 48 3.3 -10~52 4.1 300 152 0.76
AA-100-24 100 24 5.6 -10~52 4.1 300 152 0.76
PN-D3024D

Product DectriptionPN-D3024D MiniIntelligent Dehumidifying Device adopts the semi-conducting cooling dehumidification method. The fans of dehumidification device absorb the moist air into dehumidifica…detailed>>

PN-D2412D

Product DectriptionPN-D2412D MiniIntelligent Dehumidifying Device adopts the semi-conducting cooling dehumidification method. The fans of dehumidification device absorb the moist air into dehumidifica…detailed>>

AA-200-48

Peltier Thermoelectric Air Conditioner Cooler 200W 48V DC -10 to +50C IP55 Fans 1m or 3m wiring for telecom cabinetProduct Details:Product Dimensions: 15.8 x 6 x 7 inches ; 17.2 poundsCurrent Rating: …detailed>>

AA-200-24

Thermoelectric Air Conditioner 200W cooling power DC24VModel No: AA-200-24Max cooling power: 200WInput voltage: DC24VAll products are manufactured in an ISO 9001:2008& ISO/TS 16949:2009 certified…detailed>>

AA-150-48

P&N Technology Telecom cabinet cooler thermoelectric high reliabilityModel No: AA-150-24Max cooling power: 150WInput voltage: DC48V (we provide DC24V verison if you prefer)Heating function: YesAll…detailed>>

AA-150-24

PN Technology Battery rack cooling system Thermoelectric cooler manufacturerModel NO: AA-150-24Max cooling power: 150WVoltage: DC24VAll products are manufactured in an ISO 9001:2008& ISO/TS 16949:…detailed>>

AA-100-48

Thermoelectric air to air cooler 100W 48V for incubatorModel No: AA-100-48Max cooling power: 100WInput voltage: DC48V (we have DC24V version if you prefer)All products are manufactured in an ISO 9001:…detailed>>

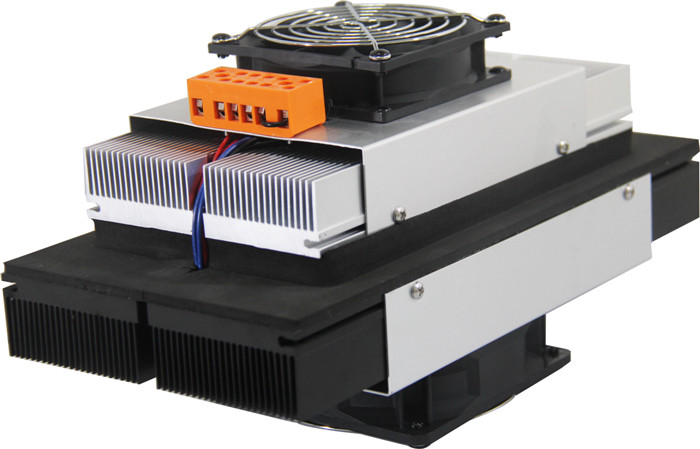

AA-100-24

Peltier cooling system for enclosure coolerModel No: AA-100-24Max cooling power: 100WInput voltage: DC24V (we have DC48V version if you prefer)All products are manufactured in an ISO 9001:2008& IS…detailed>>

AA-70-24

Panel rack cooling system thermoelectric air conditioner 70WModel No: AA-70-24Max cooling power: 70WInput voltage: DC24V (we have DC12V version if you prefer)All products are manufactured in an ISO 90…detailed>>

AA-70-12

Peltier Air conditioner DC12V 70W for wine cooler industrial useModel No: AA-70-12Max cooling power: 70WInput voltage: DC12V (we have DC24V version if you prefer)All products are manufactured in an IS…detailed>>

AA-40-24

Peltier heat exchanger for lab equipment 40W cooling powerModel No: AA-40-24Max cooling power: 40WInput voltage: DC24V (we have DC12V version if you prefer)All products are manufactured in an ISO 9001…detailed>>

AA-40-12

Mobile small refrigerator peltierModel No: AA-40-12Max cooling power: 40WInput voltage: DC12V (we have DC24V version if you prefer)All products are manufactured in an ISO 9001:2008& ISO/TS 16949:2…detailed>>

AA-24-12

Thermoelectric Peltier Air Cooler 12V DC 24W -10 to 50 C 1.4IbKey Features:-- Compact thermoelectric cooler (air-to-air heat exchangers) 24w 12v for high performance at low cost-- 12V DC operation, it…detailed>>
