Plate to Liquid Series
The thermoelectric Plate to Liquid series is used to cool or heat either objects attached directly to the cold plate, or enclosures by attaching a thermal conductive container to the cold plate. Heat is dissipated to a liquid on the warm side. The liquid circuit is normally of a circulating type with a pump and a Liquid-to-Air heat exchanger removing the heat into the ambient air. By using an efficient heat exchanger and one or more thermoelectric Plate to Liquid Assemblies a very powerful yet compact system is created.
Our standard thermoelectric assemblies are optimized for high cooling capacity and efficiency rather than maximum ΔT. Typical applications include temperature cycling of electronic components, laser cooling and analytical instruments.
Model No | Pc Max(W) | Voltage(V) | Current(A) | Ambient(℃) | Weight(Kg) | L(mm) | W(mm) | COP |
---|---|---|---|---|---|---|---|---|
PL-210-24 | 210 | 24 | 8.1 | -10~63 | 1.3 | 240 | 60 | 1.07 |
PL-120-24 | 120 | 24 | 4.2 | -10~63 | 0.68 | 140 | 60 | 1.21 |
PL-60-12 | 60 | 12 | 4.7 | -10~63 | 0.4 | 100 | 60 | 1.18 |
PL-210-24
Thermoelectric Plate to Liquid cooler (for plate surface/ block cooling)Model NO: PL-210-24Hot side: water blockCold side: Alu plate for plate surface cooling or block coolingMax cooling power: 210WIn…detailed>>

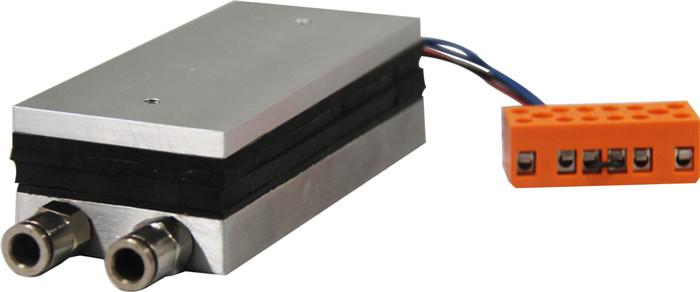

PL-120-24
Peltier Plate to Liquid cooler (for plate surface/ block cooling)Model NO: PL-120-24Hot side: Alu liquid blockCold side: Alu plate for plate surface cooling or block coolingMax cooling power: 120WInpu…detailed>>
PL-60-12
Small Peltier Plate to Liquid cooler (for plate surface/ block cooling)Model NO: PL-60-12Hot side: Alu liquid blockCold side: Alu plate for plate surface cooling or block coolingMax cooling power: 60W…detailed>>
