Center hole and annular Module

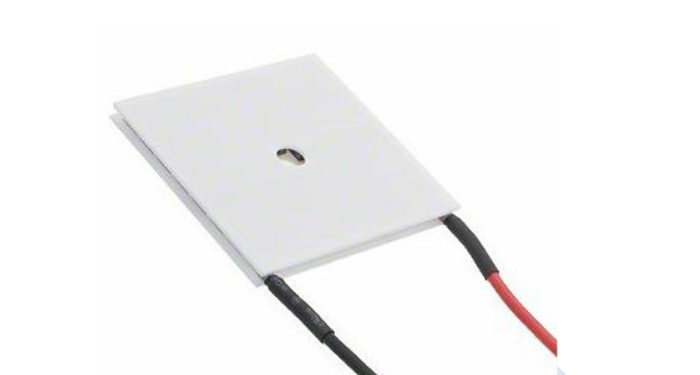

The thermoelectric center hole module for transmission of light,wires, probes or other hardware through the TEM.  It is suitable for industrial,electrical equipment, laboratory and optical-electronics.

thermoelectric module|
Th=27℃ Dimensions(mm)
 Model No.  I max(A) Q max(W) V max(V) ΔT max(℃) N A B C D E/H
TEC1-125080 8.5 67.7 15.2 68 125 40 40 40 3.3 4.7
TEC1-125060 6 50.7 15.2 68 125 40 40 40 3.6 4.7
TEC1-125040 3.9 32.9 15.2 68 125 40 40 40 3.9 4.7
TES1-125040 3.9 32.9 15.2 67 125 30 30 30 3.2 3.6
TES1-095040 3.9 25.1 11.5 67 95 30 30 30 3.2 14.5
TES1-125030 3 25.3 15.2 67 125 30 30 30 3.6 3.6
TES1-095030 3 19.3 11.5 67 95 30 30 30 3.6 14.5
